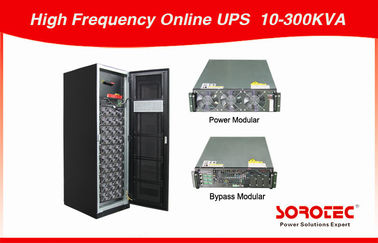

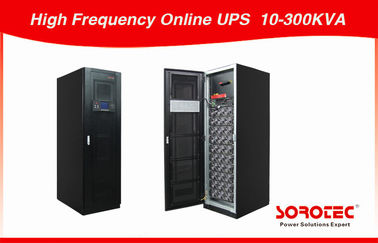

High Frequency Online Modular UPS MPS9335C support 13 Language , 10-1200KVA capacity

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: SOROTEC
ได้รับการรับรอง: CE,ROHS,ISO9000
Model Number: MPS9335C 10 - 300KVA
การชำระเงิน:
Minimum Order Quantity: 1PCS (Sample are Available)
ราคา: Negotiable Price
Packaging Details: Standard Exported Cartons and Pallets for Modular UPS
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

ข้อมูลรายละเอียด

สินค้า: UPS แบบแยกส่วน แบบ: MPS9335C ซีรี่ส์ความถี่สูงออนไลน์
ออกแบบ: การออกแบบ N + X Paralle ระยะ: 3PH เข้า / ออก 3ph
UPS ออนไลน์: การขยายกำลังการผลิตแบบออนไลน์และการบำรุงรักษา ใบสมัคร: อุตสาหกรรม
เวลาโอน: 2ms ความจุ: 10-1200KVA
ตัวประกอบกำลัง: 1.0 แรงดันแบตเตอรี่: ± 240VDC
แสงสูง:

ups power

,

remote control ups

รายละเอียดสินค้า

High Frequency Online Modular UPS MPS9335C Can Display 13 Language



N+X modular design,full upgrade dprotection

MPS9335C series power system structure is extremely flexible ,the concept of power modular designing can be easily removed at runtime and installed without affecting system operation and out,implement investment planning with the need to expand,allowing users to achieve dynamic growth with business development.



It saves customer's costs for initial equipment purchasing and future expansion,when user estimated UPS capacity,ofen underestmated or high expected ,MPS9335C series power can solve the above problem effictively,help user to carry out construction and investment in phase under the condition that future development derection is not clear,when the user want to add load to the UPS,only adding the required number of modules for expansion.



Key Features:

1.Superior energy saving.

2.Easy-to-install,maintain,modify.

3.The number of battery cells can be configured flexibly.

4.Extra large LCD that can display 13 language .

5.Advanced DSP full digital control technologies realize higher system stability.

6.Parallel technology realizes parallel operation of 4UPS units.

7.Intelligent battery management maintains battery automatically to prolong the battery life.



Technical Specifications of Modular UPS, MPS9335 10-300KVA:

Model

                             MPS9335 10-300KVA
Capacity                                     10-300KVA
Main input
Input voltage          380V/400V/415AC(Optional South America 208v)
Input Frequency Range                                  50/60Hz
Power Factor                     Full load>0.99 ,Half load >0. 98
THDi                                  THDi <3%
Input power soft-start fantion                               5-30s settable
Input Voltage Ranges   228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40%
Frequency Range                                 40-70Hz
Battery
Battery Voltage  ±240VDC(Default),12V Battery30-40pcs can be choose
Charge Voltage accuracy                                     ± 1%
Bypass
Bypass Input voltage                     380/400/415VAC 3-phase 4-wire
Voltage Ranges   Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software
Overload Capacity  150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms
Output
Inverter Output Voltage                     380/400/415VAC 3-phase 4-wire
Voltage Accuracy          ± 0.5%(balanced load),   ± 1% (unbalanced load)
THDi          THD<1%(linear load),  THD<3%(nonlinear load)
Power Factor                                          0.9
Three Phase Angle accuracy                                120°c ± 0.5°c
Current Crest Ratio                                          3:1
Overload Capacity              110%1h,125%10mins,150%1mins,>150%200ms
Transfer Time                           0ms,15ms(ECO Mode)
System
Frequency                           50Hz/60Hz (Settable)
Mains synchronization range   ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz
Protection Level                                        IP20
Communication Ports  RS232,RS485,dry contact,SNMP card,EPO,generator port
System efficiency   > 96% at load above 50%, >95% at load above 25%
Operation Temperature                                       0-40 °c
Storage Temperature                       -25 °c -70 °c (without battery)
Humidity                             0-95%(no-condensing)
Noise(dB)                         55-62dB,Adjusted with load
  5 module cabinet   module :RMS050/10, RMS100/20, RMS150/30   150KG
  10 module cabinet   module :RMS100/10, RMS200/20, RMS300/30   150KG
    module :PM10              10KVA power module :20KG
Weight   module :PM20              20KVA power module :21KG
    module :PM30              30KVA power module :32KG
Dimendion(W XD XH)mm   5 module cabinet                       600X1400X850
10 module cabinet                       600X2070X850
power module       440X132X660(10KVA/20KVA/30KVA)



High Frequency Online Modular UPS MPS9335C support 13 Language , 10-1200KVA capacity 0
