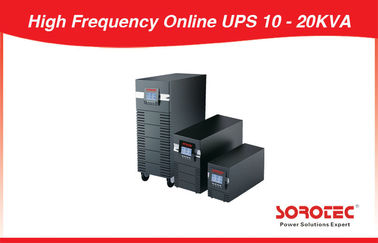

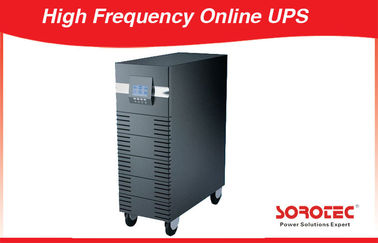

20KVA 14KW 380VAC Uninterruptible Power Supply 3 Phase Online UPS for Data Center

รายละเอียดสินค้า

20KVA 14KW 380VAC 3Phase Stable Online UPS Uninterruptible Power Supply for Data Center



►Product Snapshot:

Model:HP9316C Series High Frequency Online UPS

Capacity: 10KVA / 7KW,15KVA / 10.5KW, 20KVA / 14KW

Phase:     3Ph in/1Ph out

Nominal Voltage: 220 /230 / 240X (1±2%)VAC

Frequency Regulation: 50 / 60 Hz±0.05Hz

Parallel Operation: Max Up to 3 PCS UPS

Output Power Factor: 0.7/0.8(optional,standard 0.7)



►Key Features:

●Large blue back light LCD for detailed Real-time UPS status display.



● Advanced online pure sine wave power supply system, with bypass repair switch, It can

provide a reliable,high quality AC power source to the precision equipments,can be used widelyin different fields.



● Widely used to computer equipments,telecommunication systems and Industrial automatic control equipments.



● Truly online design,different from offline,it can adjust the input voltage, filtering,when the AC break off,the UPS will provide an uninterruptible power source from the backup batteries.



● UPS will change to bypass mode when overloading or inverter fault,when overloading remov, UPS will turn to inverter mode automatically.



● N+N Parallel Redundancy and Capacity expansion for 6-20K(up to three units)





►Technical Specifications:

Model		HP9316C 10-20KVA (3Ph in/1Ph out)
		10KT-XL		15KT-XL			20KT-XL
Rated Power		10KVA/7000W		15KVA/10500W			20KVA/14000W
Rated Voltage		380VAC 3phase with ground
Rated Frequency		50/60HZ
Input
Voltage Range		304～478VAC(±3VAC)
Frequency Range		50HZ:(46～54HZ);60HZ:(56HZ～64HZ)
Power Factor		0.98
Output
Voltage Regulation		208/220/230/240X (1±2%)VAC
Frequency Regulation		50/60HZ±0.05 Hz
Power factor		0.7
Voltage distortion		Linear load<3% Non-Linear load<6%
Overload Capability		110%～150% for 30s change to bypass model,Recover after load normal
Current Crest Ratio		3:1
Transfer time		0ms(AC mode→ Battery mode)
Battery
DC Voltage		240VDC
Recharge Current		4.2A
Display
LCD		Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Communication
Interface			Smart RS232, SNMP(optional) , USB(optional)
Environment
Operation Temperature		0～40℃
Humidity		0～95% non-condensing
Storage Temperature		-25℃～55℃
Sea level elevation		<1500m
Noise Level(1m)		<55dB
Physical Characteristic
Weight(KG)	N.W.		47		54	54
	G.W.		53		60	60
Dimension(D x W x H)mm			570 X260 X717





























































































► Application

Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…



► LCD Display Panel:
