High Efficiency Switch Power Supply SP3U-48200

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: SOROTEC
ได้รับการรับรอง: CE,ROHS,ISO9000
Model Number: SP3U-48200
การชำระเงิน:
Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

ข้อมูลรายละเอียด

โหมดพาวเวอร์ซัพพลาย: เฟสเดียว (3 เฟสเป็นตัวเลือก) แรงดันไฟฟ้าอินพุต: 80 ~ 300 Vac
ใส่ MCB: 125A / 2Px1 แรงดันไฟฟ้า: 42 ~ 58Vdc
แบตเตอรี่มาตรฐาน MCB: 125Ax2 เส้นทางเอาต์พุต LLVD มาตรฐาน: 63Ax 2, 32Ax4, 16Ax2
แสงสูง:

solar system for telecom tower

,

telecom battery backup systems

รายละเอียดสินค้า

High Efficiency Switch Power Supply SP3U-48200



Key Features:



1.Constructed with standard 19 inch screen, which has the advantage of wide use.


2.The data center area and the installation cost can be saved due to it small size and the embedded installation.


3.Wide input voltage range (85 -290Vac), the power gird is adaptable.


4.Perfect lightning protection.


5.Rectifiers are hot-pluggable. Easy and quick on line maintenance.


6.The rectifier uses DSP(Digital Signaling Processor) ology, makes the power density ran up to 14W/In3.


7.Battery management, prolongs the life of the battery well.


8.Have passed CE, UL, TLC, and other related certifications.


9.Excellent energy conservation and environmental protection.





Technical Specifications of SP3U-48200 High Efficiency Switch Power Supply :



SP3U-48200
AC Distribution
Power supply mode : Single phase (3 phase is optional)
Input Voltage: 80 ~ 300 Vac
Input MCB: 125A/ 2P×1
DC Distribution
Output Voltage 42~ 58Vdc
Standard Battery MCB 125A×2
Standard LLVD Output Route 63A× 2, 32A× 4, 16A× 2
Rectifier
Mode SR4850 SR4850 Plus
Input
Input Voltage 85Vac ~ 290Vac 85Vac ~ 305Vac
Power Factor 0.99 0.99
Efficiency 92% 96.3% peak
Max. Input Current 18A 22.5A
Output Voltage -42Vdc ~ -58Vdc -42Vdc ~ -58Vdc
Output Current 60A 73A
Operation Temperature -40~+60°C -40~+75°C
Controller STM
Display LCD
CommunicationInterface RS232,Ethernet
Analog input 1batterycurrents, 1busvoltage, 1battery Voltage,2temperatures, 4 midpoint battery voltage
Digitalinputs 2 load fuses, 4 battery fuses, 1 bi – stable contactor statues, 4 user inputs(Optional, need extra board) load fuse and battery fuse can be configured as midpoint battery voltage, load fuse and battery fuse
Outputs 1 LVD mono or bistable contactors, 1 LVD mono contactor, 8 user relay outputs (Optional, need extra board)
Protocol HTTP,SNMP,YDN23

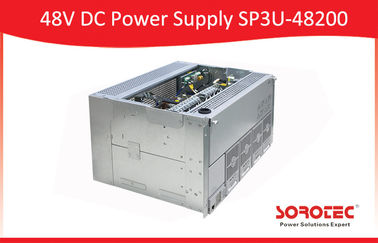

High Efficiency Switch Power Supply SP3U-48200 0

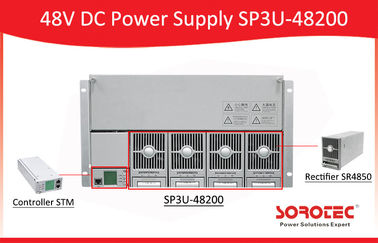

High Efficiency Switch Power Supply SP3U-48200 1

High Efficiency Switch Power Supply SP3U-48200 2
